Designed to simplify your wiring with no compromise

The APD power distribution boards (PDB) are designed for high voltage and high current applications. They consist of 8 layers of heavy copper to sustain maximum current demand whilst dissipating minimal heat, operating continuously to PCB temperatures of up to 180 °C. Each PDB can sustain a continuous amount of current, split evenly across all four outputs. They feature 12 V and 5 V regulators onboard to power peripheral devices.

The signal and telemetry lines are sandwiched between the negative (GND) layers to shield them from switching noise at high power levels. Additionally, they have double sided main input power pads which allow for greater reliability with soldered connections. The PDBs are designed with flight controller mounting in mind, with standard 30.5 mm x 30.5 mm hole spacing. Solder tabs extend off the PCB to allow for thermal relief to make soldering easier.


APD PDB500

Designed Not to Break

  • 8 layers of 4-ounce copper

  • PCB rated for 180 °C continuous

  • ISOLA 185HR dielectric glass fibre for maximum thermal performance

  • Over current and short circuit protection on both 5 V and 12 V regulators

  • NDAA/DFARS-compliant options available upon request

APD PDB500

Modular Layout

  • Power and signal laid out for 4 ESCs

  • Dual main battery inputs

  • 30 x 30 mm mounting for control stacks

  • Multiple points of 12 V and 5 V outputs

APD PDB500

Capable

  • 4S - 14S input voltage

  • 12 V, 3 A regulator

  • 5 V, up to 3 A regulator

  • Up to 500 A continous distribution

Power Delivery

100V 800uF Cap Bank

100V 800uF Cap Bank

PDB500[X]

PDB500[X]

PDB360[X]

PDB360[X]

Explore the range

  • APD designed and manufactured capacitor bank ensures your ESC’s perform to their maximum by reducing input noise and voltage ripple.

    The 100V low impedance capacitor bank is designed for the HV_Pro ESCs, intended for setups where the input leads to the ESC from the power supply exceed 1 meter, or excessive input ripple scenarios.

    Features:

    • 100V 800uF Low Impedance Electrolytic Capacitors

    • 4 Layer, 4-ounce copper PCB

    • High temperature and current

    • Operation up to 105°C

    • Voltage ripple reduction

    NDAA/DFARS-compliant options available upon request.

    Documentation and Datasheets can be found at: docs.powerdrives.net

    Weight: 39g

    CAD Model: 100V Capacitor Bank

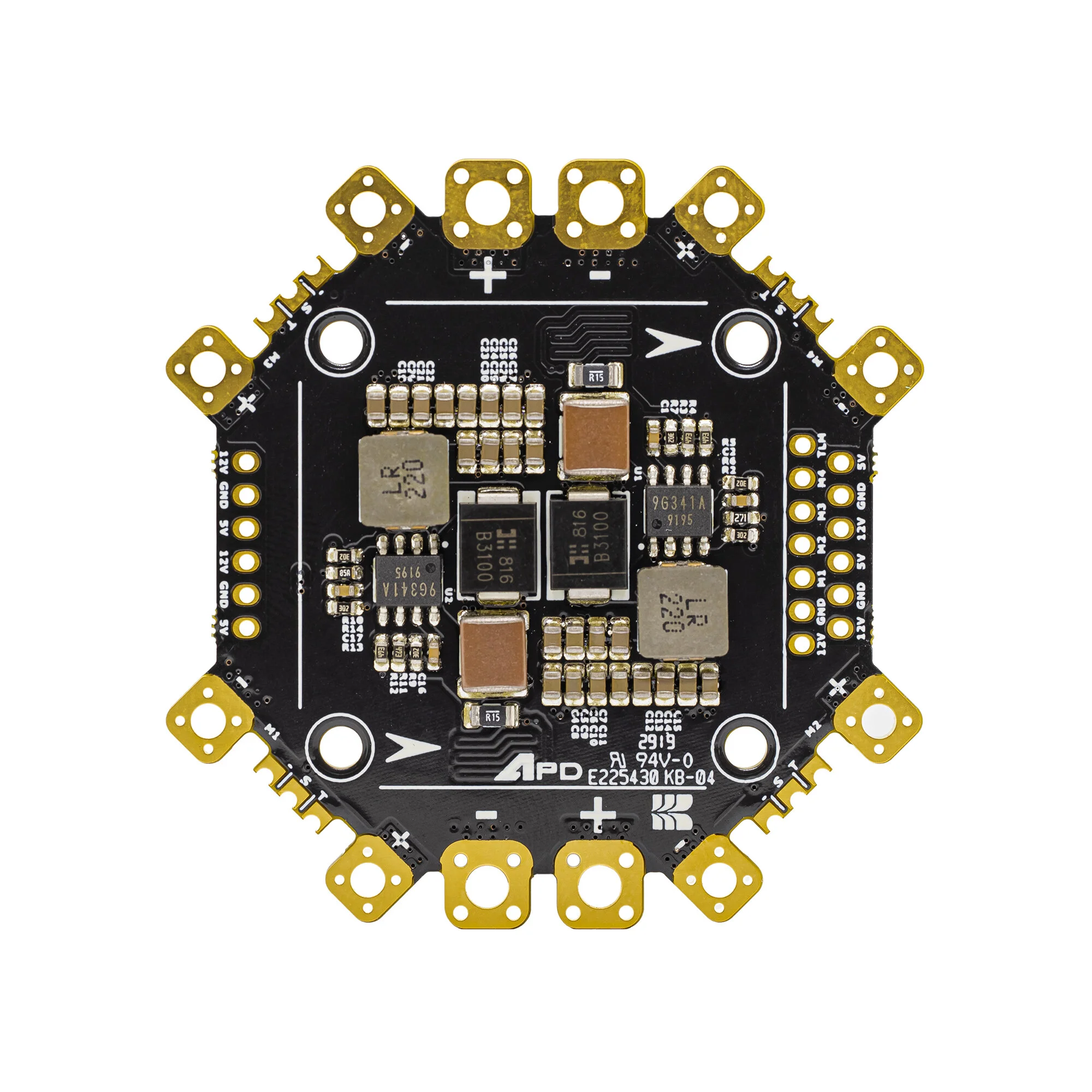

  • The PDB500 is designed for high voltage and high current applications. It consists of 8 layers of heavy copper to sustain maximum current demand whilst dissipating minimal heat. This PDB can sustain up to 125A continuous to each ESC leg. Also features 12V 3 Amp and 5V 3 Amp regulators with a maximum of 14S (60V) input.

    Signal and telemetry lines are sandwiched between the negative (GND) layers to shield them from switching noise at high power levels.

    The PDB500 has double-sided main input power pads which can be soldered or bolted to (not recommended for high power). It allows for flight controller mounting with standard 30.5mm x 30.5mm hole spacing. Solder tabs extend off the PCB to allow for thermal relief to make soldering easier.

    Manufactured using ISOLA 185HR high-performance dielectric glass fibre to sustain continuous high-temperature scenarios.

    NDAA/DFARS-compliant options available upon request.

    Features:

    • 4S-12S input

    • 8 Layers of 4oz copper to each ESC

    • 12V @ 3A switching regulator

    • 5V @ 3A switching regulator

    • Overcurrent and short circuit protection on both 5V and 12V regulators

    • Two main power inputs, modular battery

    • Thermal relief on all solder tabs to allow for easier soldering

    • 2.5mm thickness for strength and reliability

    • 58mm x 58mm in size

    • PCB rated for 180°C continuous

    • ISOLA 185HR dielectric glass fibre for maximum thermal performance

    • Designed and manufactured in Australia.

    Weight: 0.05kg

    Dimensions: 58x58x5mm

    Documentation: docs.powerdrives.net

    CAD Model: PDB500 CAD Model

  • The PDB360 is designed for high voltage and high current applications. It consists of 8 heavy copper layers to sustain maximum current demand whilst dissipating minimal heat. This PDB can sustain up to 90 A continuous to each ESC leg. Also features 12 V 3 A and 5V 1 A regulators with a maximum of 8S (34 V) input.

    Signal and telemetry lines are sandwiched between the negative (GND) layers to shield them from switching noise at high power levels.

    The PDB360 has double-sided main input power pads which can be soldered or bolted to (not recommended for high power). It allows for flight controller mounting with standard 30.5 mm x 30.5 mm hole spacing. Solder tabs extend off the PCB to allow for thermal relief to make soldering easier.

    Manufactured using ISOLA 185HR high-performance dielectric glass fibre to sustain continuous high-temperature scenarios.

    NDAA/DFARS-compliant options available upon request.

    Features:

    • 4S-8S input

    • 8 Layers of 3 oz copper to each ESC

    • 12 V @ 3 A switching regulator

    • 5 V @ 1 A linear regulator

    • Overcurrent and short circuit protection on the 12 V regulator

    • Thermal protection on the 5 V regulator

    • Two main power inputs, modular battery

    • Thermal relief on all solder tabs to allow for easier soldering

    • 2.5 mm thickness for strength and reliability

    • 58 mm x 58 mm in size

    • PCB rated for 180 °C continuous

    • ISOLA 185HR dielectric glass fibre for maximum thermal performance

    • Designed and manufactured in Australia.

    Documentation and Datasheets can be found at: docs.powerdrives.net

    Additional Information

    Weight: 0.021 kg

    Dimensions: 58x58x5 mm

    Documentation: docs.powerdrives.net

    CAD Model: PDB360 CAD Model
